ChartBytes

Turn your numbers into bar, line, area, scatter, pie and donut chart images that show anywhere a picture can: emails, chat messages, documents and READMEs.

Create chart

Draw a bar, horizontal bar, stacked bar, line, area, scatter, pie or donut chart from your labels and numbers, as a PNG or SVG. Returns a link to the picture, ready-made HTML and Markdown to show it in an email, page or README, the colour of each series, and the file itself when asked.

Inputs

Chart typechart_typetext: What kind of chart to draw. Bar, line and area charts can compare several series; pie and donut charts show one set of numbers as shares of a whole.One of: bar, hbar (Horizontal bar), stacked (Stacked bar), line, area, scatter, pie, donut. Default: bar.
Labelslabelslist: The name of each point along the bottom of the chart, or of each slice of a pie, in the same order as the numbers. Leave empty to number them 1, 2, 3. A comma inside a label becomes a space.
Valuesvalueslist: The numbers to chart, one for each label. Use this for a single set of numbers, or Series for several.
Seriesseriesobject: Several sets of numbers to compare on one bar, line, area or scatter chart: give each a name and its numbers, one for each label, such as Revenue: 12, 19, 8, 24. ChartBytes draws no legend, so the result lists each series' colour for you to show.
Titletitletext: A title shown above the chart. Leave empty for none.
Formatformattext: PNG works everywhere, email included. SVG stays sharp at any size and is smaller, but many email apps don't show it.One of: png, svg. Default: png.
Width (pixels)widthnumber: How wide the chart is. 600 by default.From 80 to 2000. Default: 600.
Height (pixels)heightnumber: How tall the chart is. 300 by default.From 80 to 2000. Default: 300.
Also save the chart as a filesave_as_filetrue/false: Off by default, because the link is all an email, a chat message or a document needs. Turn it on when a later step needs the file itself: attaching it to an email, uploading it to storage, or posting it as a file.Default: false.

Outputs

chart_typetext: The kind of chart: bar, hbar, stacked, line, area, scatter, pie or donut.
content_typetext: The saved file's type, e.g. image/png, or '' when not saved.
document_reftext: The saved file's document reference, or '' when not saved.
documentslist: The saved chart as a document, ready to attach to a later step. Empty when it was not saved.
file_size_bytesnumber: The saved file's size in bytes, or 0 when not saved.
file_urltext: A URL that serves the saved file, or '' when not saved.
formattext: The picture's format: png or svg.
heightnumber: The chart's height in pixels.
image_tagtext: The same link as an HTML <img> tag, with alt text and the chart's width and height, for a step that writes an email or a page.
labelslist: The label of each point or slice, in order: 1, 2, 3 when none were given.
legendlist: The colour of each series (each slice, for a pie or donut), in order, for writing a legend next to the chart: ChartBytes draws none.
markdowntext: The same link as a Markdown image, for a README, Notion or a chat message.
saved_as_filetrue/false: True when the chart was also saved as a file (Also save the chart as a file). The file fields are empty otherwise.
titletext: The chart's title, or '' when it has none.
urltext: A link to the chart's picture. It shows the chart anywhere a picture can go: an email, a chat message, a document or a web page.
widthnumber: The chart's width in pixels.

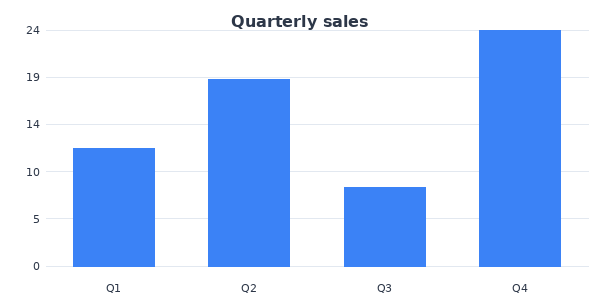

Example output

{
  "chart_type": "bar",
  "content_type": "",
  "document_ref": "",
  "documents": [],
  "file_size_bytes": 0,
  "file_url": "",
  "format": "png",
  "height": 300,
  "image_tag": "<img src=\"https://chartbytes.meridian-digital.pro/chart?t=bar&amp;d=12,19,8,24&amp;labels=Q1,Q2,Q3,Q4&amp;title=Quarterly%20sales&amp;w=600&amp;h=300\" alt=\"Quarterly sales\" width=\"600\" height=\"300\">",
  "labels": [
    "Q1",
    "Q2",
    "Q3",
    "Q4"
  ],
  "legend": [
    {
      "color": "#3B82F6",
      "name": "Values"
    }
  ],
  "markdown": "![Quarterly sales](https://chartbytes.meridian-digital.pro/chart?t=bar&d=12,19,8,24&labels=Q1,Q2,Q3,Q4&title=Quarterly%20sales&w=600&h=300)",
  "saved_as_file": false,
  "title": "Quarterly sales",
  "url": "https://chartbytes.meridian-digital.pro/chart?t=bar&d=12,19,8,24&labels=Q1,Q2,Q3,Q4&title=Quarterly%20sales&w=600&h=300",
  "width": 600
}
